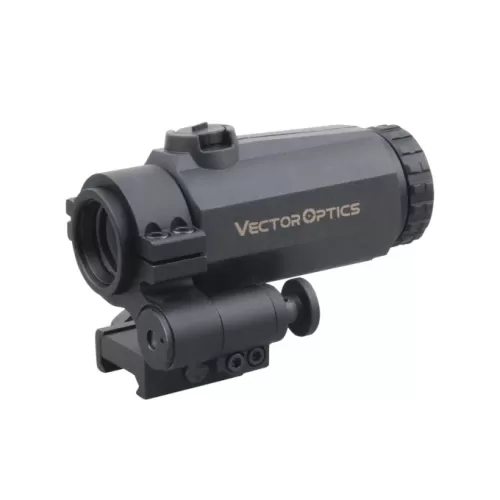

MAVERICK-III 3x22 Magnifier

The MAVERICK-III 3x22 by Vector Optics is a compact magnifier designed to pair with red dot sights, greatly improving precision at mid-range distances. It features 3x magnification and fully multi-coated lenses (FMC) for a crisp and clear image with minimal distortion. Thanks to its long 69 mm eye relief, the magnifier offers comfortable aiming even when switching targets rapidly.

Included is a Flip Side mount for RIS rails, allowing fast, intuitive flip-to-side deployment when transitioning between magnified and unmagnified views. Compact dimensions and a durable 6061-T6 aluminum alloy construction ensure reliability in demanding conditions. The optical center sits at 36 mm above the base, making it compatible with a wide range of red dot sights.

Compatibility

Compatible with red dots like SCRD-45, SCRD-46, SCRD-47, SCRD-12, SCRD-33, SCRD-34 and more. For perfect height alignment with the Maverick Gen3 (SCRD-41), we recommend the MAV-P08 mount.

Key Features

3x Magnification

Improved precision at mid-range distances.

69 mm Eye Relief

Comfortable aiming without straining your eye.

Flip-Side Mount

Quick side deployment, perfect for red dot pairing.

Compact Dimensions

36 mm optical center height, fits most optics and mounts.

Durable Build

Lightweight yet strong 6061-T6 aluminum alloy with matte black finish.

Technical Specifications

Magnification: 3x

Objective Diameter: 22 mm

Exit Pupil: 7.0 mm

Eye Relief: 69 mm

Field of View (Angle): 6.75°

Lens Coating: Fully Multi-Coated

Mount: RIS (Flip Side Mount SCTM-17)

Adjustment: Windage & Elevation

Material: 6061-T6 Aluminum Alloy

Length: 103 mm

Height (base to optical center): 36 mm

Weight: 290 g

Package Contents

MAVERICK-III 3x22 Magnifier

30mm Flip Side Mount

Cleaning Cloth

Allen Keys

User Manual
